Description

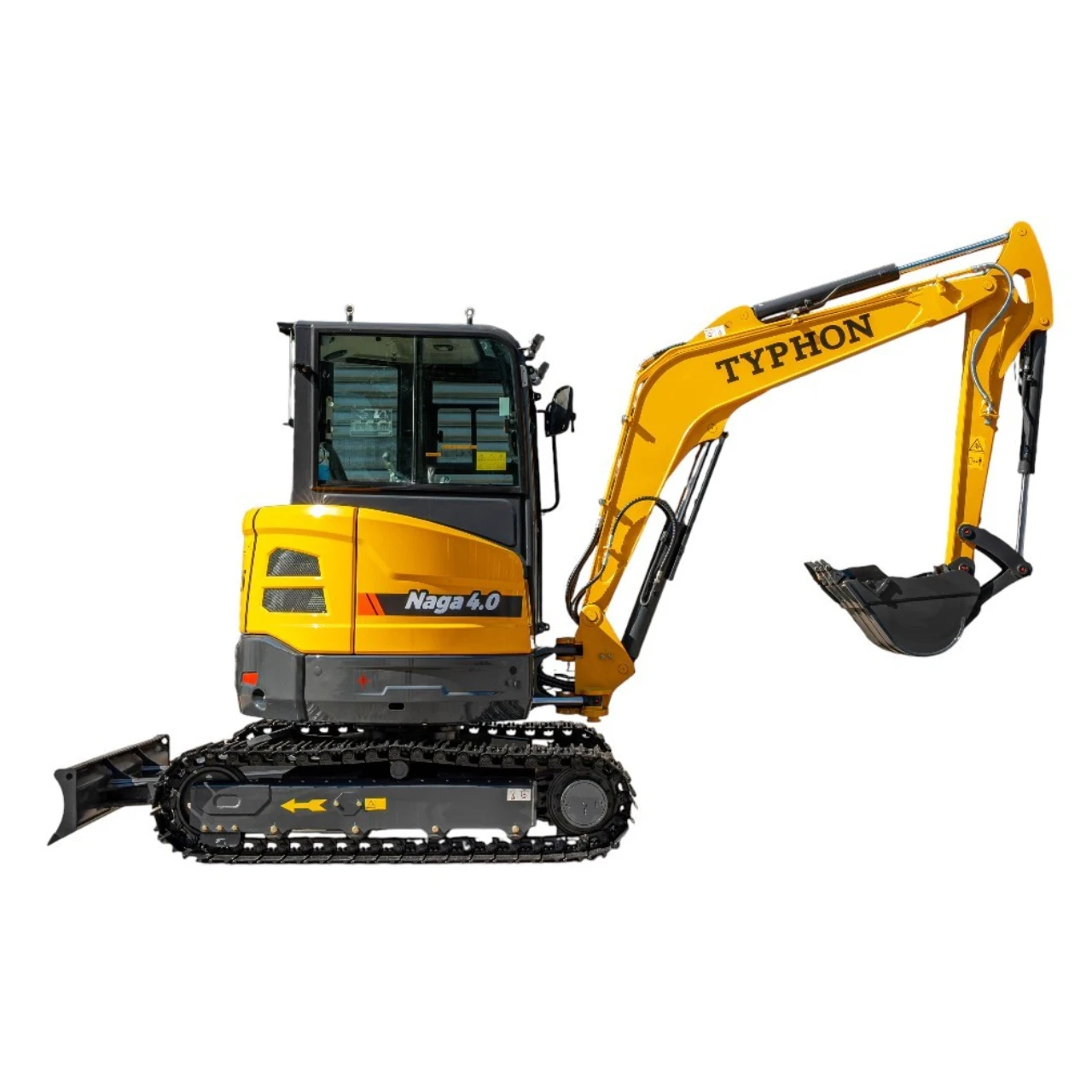

The TYPHON NAGA 4.0 is a space-efficient yet high-performance mini excavator designed for small and urban jobs where space and performance matter. Its zero-tail swing, 360° rotation, and 33.9 in tail swing radius enable safe, productive performance in confined job sites, while the stable undercarriage, 30° grade ability, and 55° left/right boom swing deliver steady, accurate control for daily excavation work. Despite its space-efficient size, the NAGA 4.0 offers superior digging strength with a 6,834 lbf bucket force and 4,092 lbf arm force, which makes it excellent choice for trenching, foundations, and tough soil conditions. Powered by the reliable YANMAR 3TNV88F engine, it combines robust performance, fuel productivity, and compliance with EPA Tier 4 Final and EU Stage V standards. The operator-friendly cabin includes ISO/SAE selectable controls, a 7-inch touchscreen display for machine monitoring and settings, an adjustable suspension seat, and LED work lights, helping keep comfort, accuracy, and productivity throughout long working hours.

TYPHON NAGA 4.0 Main Feature:

1. Accuracy in Confined areas:

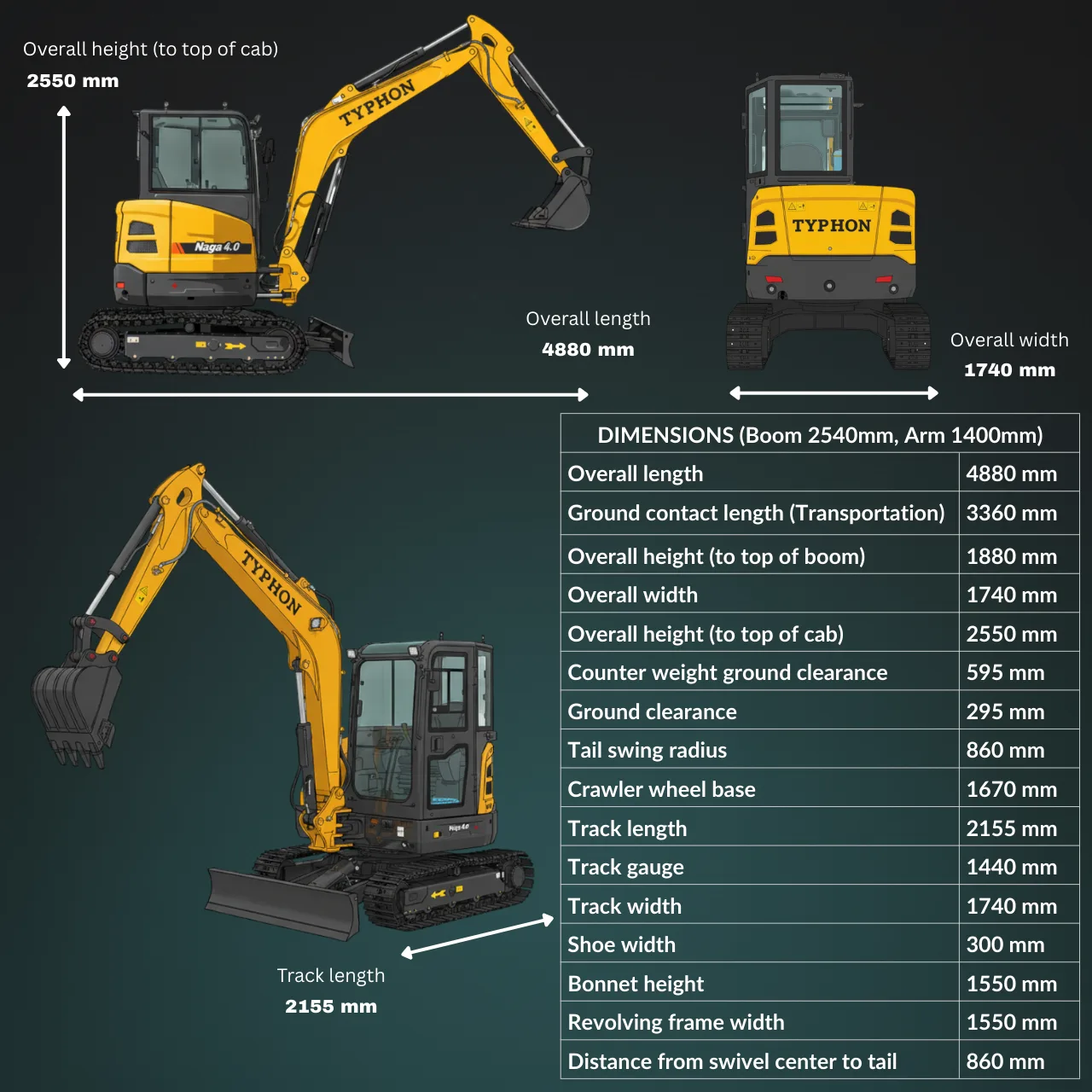

Designed for small jobs, this space-efficient machine provides robust performance in tight and urban job sites. With a zero-tail swing design, 360° rotation, and an 33.9 in tail swing radius, it allows secure and productive performance in limited spaces. Measuring 16.01 ft in overall length, 68.5 in in overall width, and 8.37 ft in overall height (to top of cap), it provides an excellent balance of size and capability. A 7.07 ft track length, 56.7 in track gauge, and 30° grade ability assist keep stability on uneven terrain. The 55° left and right boom swing and 0–9 r/min swing speed provide steady, accurate control for efficient daily work.

2. Unstoppable Breakout Force:

The TYPHON NAGA 4.0 series provides raw power that defies its size, built to penetrate the toughest terrain. This unit boasts a massive 6,834 lbf bucket digging force and an 4,092 lbf arm digging force, helping keep it cuts through compacted clay or rocky soil with ease. With a high-capacity 4.24 cu ft bucket capacity with a 25.6 in bucket width, it is optimized for rapid load handling and commercial-grade trenching. Fitted with a Three-way stop valve, this combination of high-torque hydraulics and a robust digging design assists keep added productivity, delivering the “unstoppable” force required for challenging commercial jobs where speed and power are non-negotiable.

3. Heavily Power:

Under the hood of this 4-ton powerhouse sits the world-renowned YANMAR 3TNV88F diesel engine. This three-cylinder, direct-injection engine provides steady, reliable torque and generates 24.4 HP (24.4 HP) at 2200 rpm, while meeting strict EPA Tier 4 Final and Europe Stage V emission standards. With a 0.43 gal displacement, it offers the high-performance performance needed for grueling daily operations without sacrificing fuel productivity. Engineered for endurance, the machine includes a large 13.21 gal fuel tank and a 10.57 gal hydraulic oil tank, minimizing downtime, while the advanced cooling system and 1.77 gal engine oil capacity assist keep peak performance under heavy load. Whether traversing the site at Two Travel speed 2.4-2.73 MPH or performing Low-High accuracy excavation, this Yanmar-powered system provides the relentless strength, dependable hydraulic flow, productivity, and compliance required for modern industrial jobs.

4. Operator-Friendly:

TYPHON NAGA 4.0 mini excavator is designed for maximum operator comfort and productivity, with an ergonomic control layout with intuitive, low-effort joysticks and ISO/SAE selectable controls for accurate, fatigue-free operation. Operators enjoy a high-visibility workspace optional enclosed AC/Heater cabin with an openable front glass window, delivering fresh air when needed. A 7-inch touchscreen display offers simple access to machine settings, control pattern selection, and performance monitoring, while LED alarms and high-intensity LED work lights assist keep clear visibility and alertness across the entire digging radius. Together, these includes transform challenging jobs into a safe, comfortable, and highly efficient experience.

5. Accessories Package:

This TYPHON NAGA 4.0 mini excavator machine includes 1 x regular digging excavator Bucket, one tool box, 1 x Fire extinguisher, 1 x Breaking Windows & Cutting Seatbelts and a digital manual with complete instructions.

TYPHON NAGA 4.0 – Key Performance Summary:

• This ISO / SAE control selection allows the operator to choose the joystick pattern that matches their operating experience.
  • ISO pattern (excavator standard): Left joystick controls Stick/Dipper (In/Out) and Swing (Left/Right), Right joystick controls Boom (Up/Down) and Bucket (Curl/Dump).
  • SAE pattern (backhoe pattern): Left joystick controls Boom (Up/Down) and Swing (Left/Right), Right joystick controls Stick/Dipper (In/Out) and Bucket (Curl/Dump).
• This YANMAR 3TNV88F diesel engine remains a space-efficient, 3-cylinder, water-cooled engine known for its dependability, fuel productivity, and compliance with strict emissions regulations like EPA Final Tier 4 and EU Stage V.

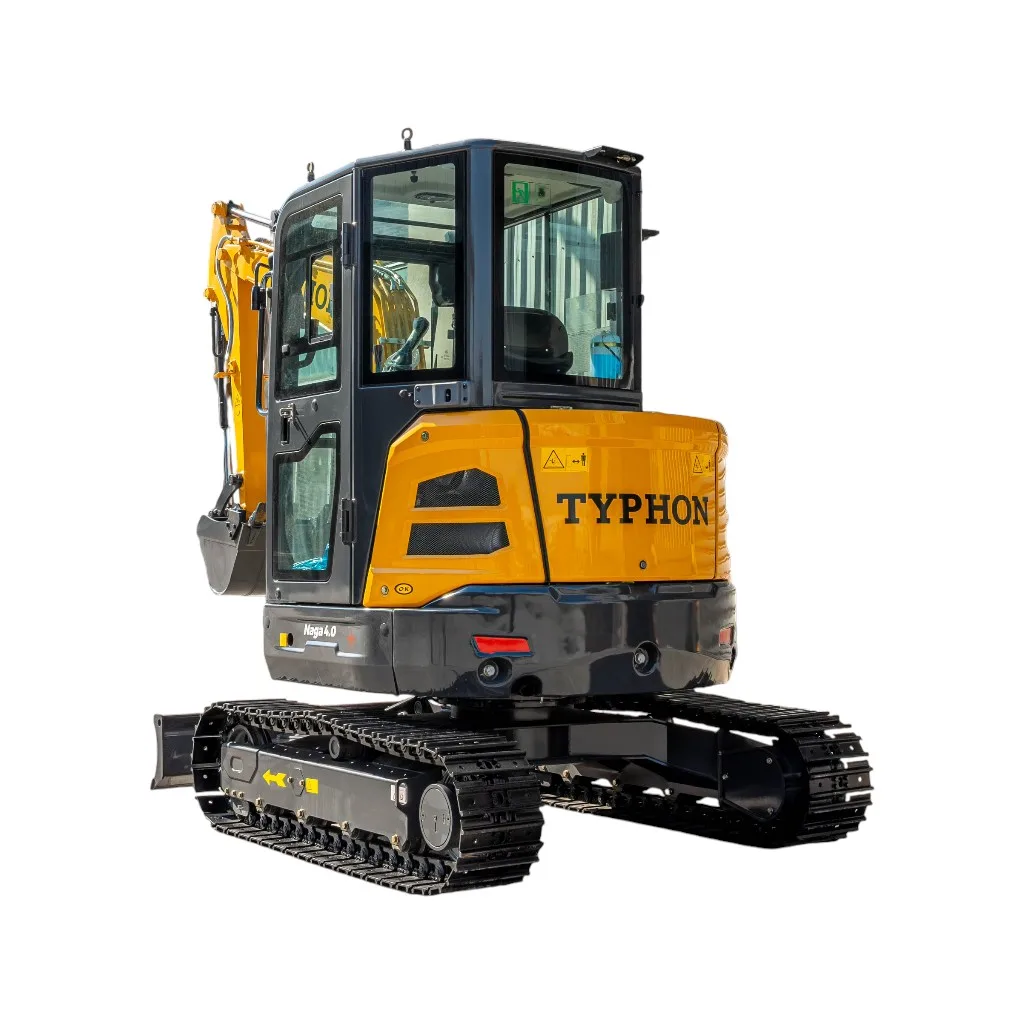

• Zero Tail Swing: Rear structure stays within track width during rotation, supporting safe operation in confined and urban spaces.
• Left & Right Boom Swing (55° / 55°): Allows offset digging along walls, foundations, and road edges without repositioning the machine.
• 360° Upper Structure Swing: Full rotation enhances digging and loading productivity while reducing machine movement.
• Two-Speed Travel: Low speed 1.49 MPH offers high torque for digging and slopes high speed 2.73 MPH allows faster site travel.
• Plunger Pump: Standard auxiliary 25.57 GPM Hydraulic flow circuit assists breakers and several attachments.
• Smart Digital Dashboard: 7-inch touchscreen displays engine data, hydraulic status, working hours, fault codes, maintenance reminders, and control pattern selection.
• Three-way stop valve: These valves are used to add a hydraulic function, such as an auger or thumb clip attachment, by rerouting the flow from an existing hydraulic line.
• Large Cabin Operation: Enclosed cabin with air conditioning and heater, openable front glass window for ventilation and communication.
• Metal Tracks: highly rugged, sturdy machines designed for harsh conditions like demolition and rocky terrain, providing better traction and longevity than their rubber-tracked counterparts.
